OUR PRODUCTS

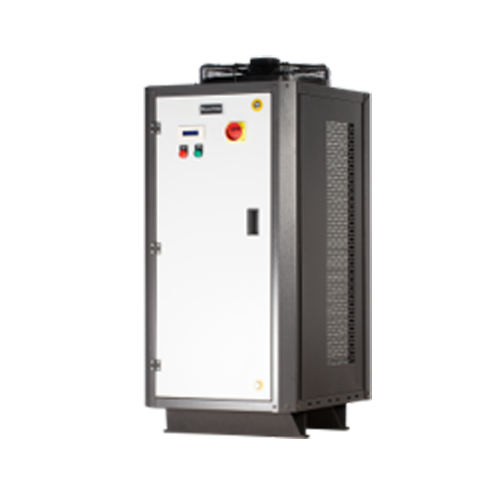

OIL CHILLERS

Hydraulic oil has a frequent need for cooling in industrial processing. Werner Finley provides oil chillers to keep your oil at a safe functioning temperature. Oil chillers are widely used in power packs where cooling is essential to keep the properties of the oil intact during the process.

In the manufacturing Industry, oils are used to perform various operations, such as hydraulics, cooling and lubrication. The physical and chemical properties of these oils are susceptible to change in temperature. Therefore, maintaining a constant desired temperature increases the life and efficiencies of these oils. The range of refrigerated oil chillers by Werner Finley is best suited for such oil-cooling applications in the Industry.

Capacity Range: 0.5TR to 10TR

Request a Quote

Features

  • Eco-friendly R134a/R407c refrigerant
  • High efficiency reciprocating / scroll compressors
  • Condenser designed to operate up to 50°C ambient temperature
  • High efficiency fin & tube / Micro-channel heat exchanger
  • Low noise level to suit indoor installation
  • Highly reliable global brand pumps
  • High efficient SS 316 plate type brazed heat exchanger
  • Microprocessor based intelligent controller

Note:

Higher capacities on request

Capacity Chart - Compact Oil Chiller

Capacity
(Tons)
Ref. Circuit
(No)
Tank Volume (LTRS) End Connection (INCH) Connected load (kW) Dimensions (WXLXH)
0.5 1 NA 1/2 1.5 500 X 550 X 880
1 1 NA 1 1.8 500 X 550 X 1300
2 1 NA 1 3.7 600 X 700 X 1400
3 1 NA 1 4.3 650 X 1000 X 1400
5 1 NA 1 7.05 650 X 1100 X 1500
10 1 NA 1-1/2 14.1 900 X 1500 X 1500

  • Specifications above are subjected to change due to continuous product development.
  • Rated Ambient Temperature 35°C, Media Temperature 30 to 35°C.

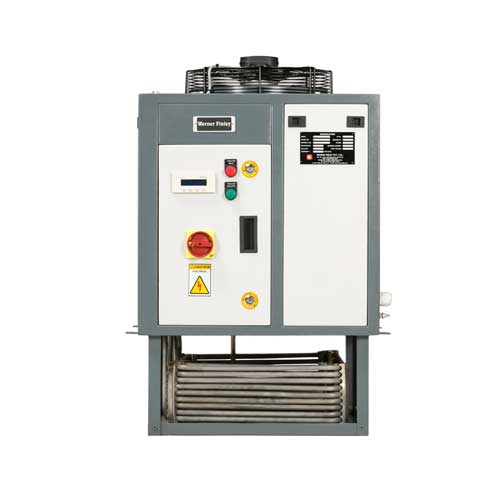

COOLANT CHILLERS

Werner Finley manufactures coolant chillers for various applications in the machine tool industry such as grinding machines and VMC’s . Water based emulsion cooling, neat cut oil chillers, and rolling and welding machines are among some of the other equipment that uses coolant chillers.

Coolants are widely used in the metal cutting industry to remove the heat and to reduce the friction caused between the tool and the job during operation. These coolants need to be maintained at a constant desired temperature, with high accuracy, in order to achieve the desired final productivity and quality. The range of Werner Finley Coolant Chillers are best suited for cooling such water based and synthetic coolants used in the industry.

Capacity Range: 1TR – 10TR

Request a Quote

Features

  • Eco-friendly R134a/R407c refrigerant
  • High efficiency reciprocating / scroll compressors
  • Condenser designed to operate up to 50°C ambient temperature
  • High efficiency fin & tube / Micro-channel heat exchanger
  • Low noise level to suit indoor installation
  • Highly reliable & globally renowned make of pumps
  • High efficiency Shell & Coil / SS coil evaporators
  • Microprocessor based intelligent controller

Note:

Higher capacities on request

Capacity Chart - Coolant Chiller - Immersion type

Capacity
(Tons)
Ref. Circuit
(No)
Tank Volume (LTRS) End Connection (INCH) Connected load (kW) Dimensions (WXLXH)
1 1 NA NA 1.5 600 X 600 X 1000
2 1 NA NA 3.1 700 X 800 X 1250
3 1 NA NA 4.1 700 X 760 X 1515
5 1 NA NA 6.6 650 X 1100 X 1500
10 1 NA NA 12.5 900 X 1600 X 1500

Capacity Chart - Coolant Chiller - Shell and Tube type

Capacity
(Tons)
Ref. Circuit
(No)
Tank Volume (LTRS) End Connection (INCH) Connected load (kW) Dimensions (WXLXH)
1 1 - 3/4" 1.8 500 X 550 X 1300
2 1 - 1" 3.5 600 X 700 X 1400
3 1 - 1" 4.2 650 X 1000 X 1400
5 1 - 1" 5.5 650 X 1100 X 1500

  • Specifications above are subject to change due to continuous product development
  • Rated ambient temperature 35°C, Media Temperature 20°C to 25°C
