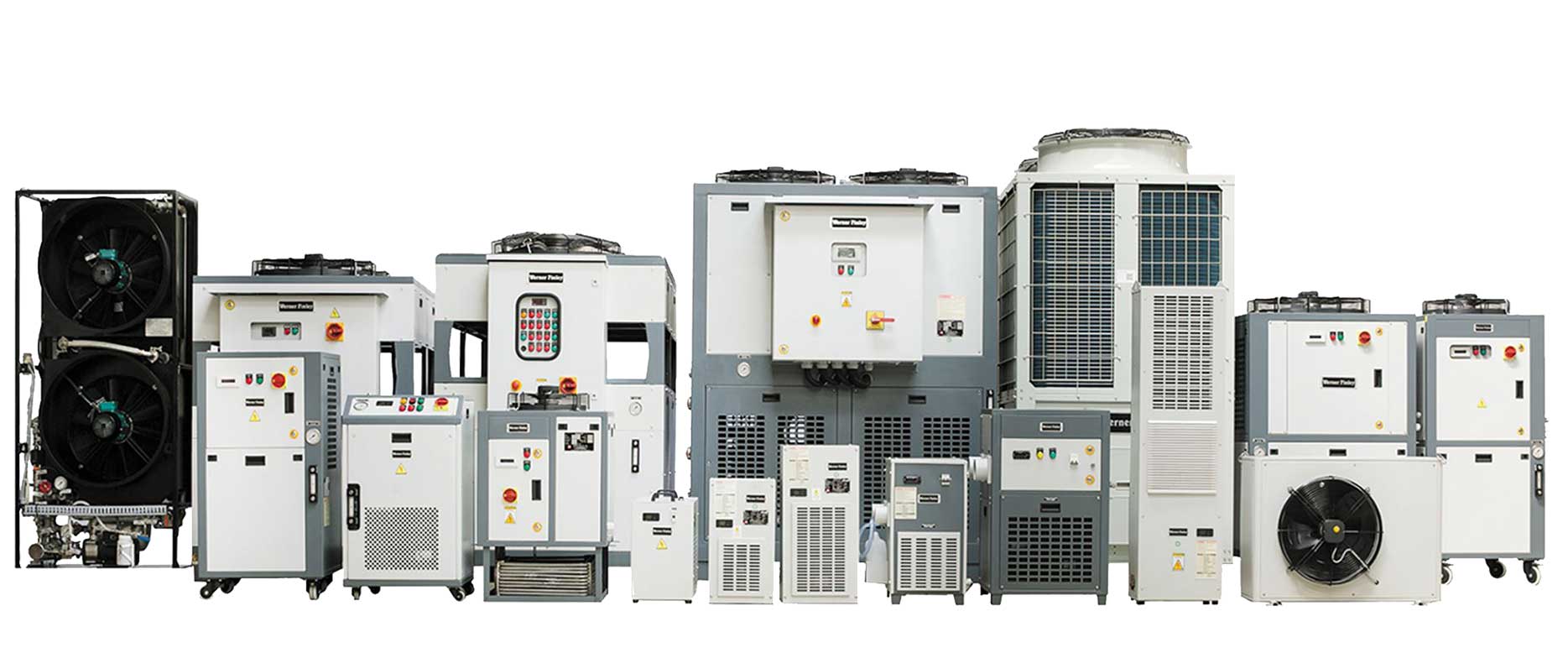

INVERTER CHILLERS

Series: ECO CHILL

Werner Finley offers a range of inverter chillers. These machines can handle varying cooling requirements thanks to the DC inverter technology. They are ideal for applications that witness large fluctuations in load throughout the day and/or different seasons.

A refrigerated chiller is a power guzzler and almost 70% of its operating life cycle cost, comes from the energy it consumes. Werner Finley Inverter chiller range answers this major concern of energy consumption in the industry. The user can expect a direct 30% reduction in energy consumption, due to the varying load patterns and varying climatic conditions at the industrial sites. These chillers are highly reliable and also come with options of industry 4.0

WATER CHILLERS

Capacity Range: 1TR – 30TR

Request a Quote

Features

  • Eco-friendly R410a refrigerant
  • High efficiency rotary / scroll compressors
  • Condenser designed to operate up to 50°C ambient
  • Insulated SS 304 reservoir
  • All wetted parts are SS 304
  • Highly reliable global brand pumps
  • High efficient SS 316 plate type brazed heat exchanger
  • Packaged/ Bare with pump / Bare without pump configuration available
  • Intelligent controller with RS485

Note:

  • Higher Capacities on Request

Capacity Chart - Inverter Water Chiller

Capacity
(TR)
Ref. Circuit
(No)
Tank Volume (Ltrs) End Connection (Inch) Connected load (kW) Dimensions (WXLXH)
1 1 25 1 1.9 500 X 550 X 1300
2 1 50 1 3.05 600 X 700 X 1400
3 1 75 1 4.2 650 X 850 X 1400
5 1 125 1 6.6 650 X 1100 X 1500
10 2 250 1-1/2 13.1 1750 X 1950 X 1150
15 3 400 2 19.6 2600 X 1200 X 1810
20 2 250 2 23.5 2260 X 1150 X 1710
25 2 250 2 29.5 2260 X 2010 X 1150
30 2 350 2-1/2 34 1150 X 2260 X 2010

  • Specifications above are subject to change due to continuous product development
  • Rated ambient temperature 35°C, Media temperature 15°C
  • Operating temperature 5-25°C

COOLANT CHILLERS

Capacity Range: 1.0TR to 5TR

Request a Quote


Capacity Chart - Inverter Coolant Chiller

Capacity
(Tons)
Ref. Circuit
(No)
Tank Volume (Ltrs) End Connection (Inch)
1.0 1 NA 1/2
2.0 1 NA 1
3.0 1 NA 1
5.0 1 NA 1

  • Specifications above are subjected to change due to continuous product development.
  • Rated Ambient Temperature 35°C, Media Temperature 20 to 25°C.
  • Operating temperature 5-25°C.
