COMPACT PANEL AIR CONDITIONER

The control panels of most of the automated machines have highly sophisticated & sensitive electrical components such as drives, PLC’s, Thyristors, transformers etc, which generate heat. This heat is undesirable and can cause the components to fail if not removed from the cabinet. Further, the cabinet should also be dust free considering the safety of the components.

Werner Finley offers panel air conditioners which not only removes the heat from the cabinet but also keeps it dust free & protects against humidity. Over three decades of engineering experience, Werner Finley has optimised the design to suit varieties of requirements.

Werner Finley has also developed new range of inverter panel air conditioner to cater to varying conditions such as load & ambient, thus helping customers to save upto of 50% energy.

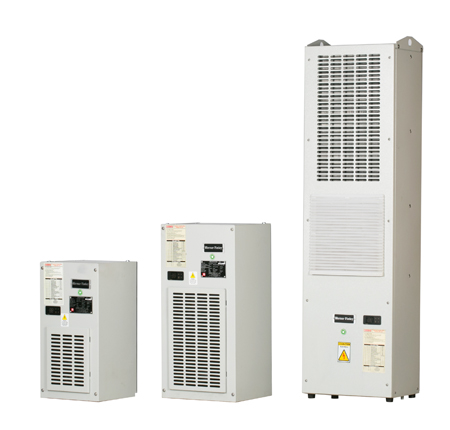

Vertical

Capacity Range: 0.2TR – 1TR

Request a Quote

Features

  • Eco-friendly R134a/R407c refrigerant
  • High efficiency Reciprocating/Scroll compressors
  • Air Condenser designed to operate up to 50°C ambient
  • High air throw fans

Vertical

Capacity
(W)
Connected Load
(KW)
Power Supply
(V,P,HZ)
Dimensions
(WXDXH)
600 0.26 230V/1P/50HZ 300 X 250 X 750
1000 0.6 230V/1P/50HZ 350 X 275 X 700
1500 0.82 230V/1P/50HZ 335 X 215 X 950
2300 1.6 230V/1P/50HZ 400 X 275 X 1400
3500 1.6 230V/1P/50HZ 400 X 275 X 1400

  • Specifications above are subjected to change due to continuous product development.
  • Rated Ambient Temperature 35°C, Rated panel temperature 35°C.

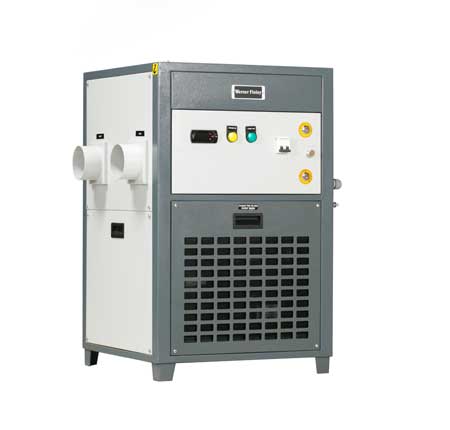

Ductable

Capacity Range: 0.3TR – 3TR

Request a Quote

Features

  • Eco-friendly R134a/R407c refrigerant
  • High efficiency Reciprocating/Scroll compressors
  • Air Condenser designed to operate up to 50°C ambient
  • High air throw fans

Ductable

Capacity
(W)
Connected Load
(KW)
Power Supply
(V,P,HZ)
Dimensions
(WXDXH)
1000 0.6 230V/1P/50HZ 350 X 485 X 650
1500 0.9 230V/1P/50HZ 450 X 500 X 750
2300 1 230V/1P/50HZ 600 X 650 X 530
3500 1.6 230V/1P/50HZ 550 X 550 X 875
5250 2.2 230V/1P/50HZ 650 X 650 X 1100
7000 2.8 230V/1P/50HZ 700 X 650 X 1150
10500 3.9 415V/3P/50HZ 850 X 700 X 1300

  • Specifications above are subjected to change due to continuous product development.
  • Rated Ambient Temperature 35°C, Rated panel temperature 35°C.
